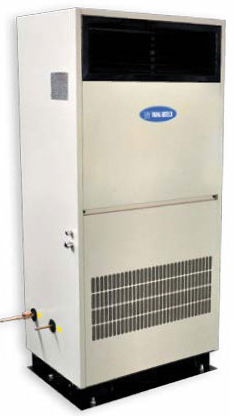

Packaged Units
Marine Packaged Unit is designed as air-cooled type or water cooled type. Our Packaged Unit is designed with compact framing structure, scroll compressor, low noise fan, and high quality strong casing. Heating function (with electric heater or steam heater) is optional according to user’s requirement.
Water-cooled packaged unit usually adopts the all-in-one structure in a compact design. It can regulate the indoor ambient temperature by either direct air blow or ducted air blow. Water-cooled packaged unit may offer a low investment and energy saving option.
Compressor: | scroll compressor or reciprocating compressor |
Condenser: | horizontal tube-shell type with high efficiency and good corrosion protection |
Refrigerant: | R407C, R417A, R134a |
Cooling Medium: | fresh/sea water |
Air Flow: | 600 ~ 1000m3/hr |
Cooling Capacities: | 2RT to 70RT |
Heating Capacity: | 0.5kW ~ 250kW |
Heating Medium: | steam, Hot water, Hot oil, Electric heating |
Electrical Control: | CPP or PLC Control |
Voltage: | 380V/3Ph/50Hz ~ 690V/3Ph/60Hz |
